28 Apr 2024
Fieldnotes: An end-to-end encrypted note-taking application
A project report
Some years ago, I got very serious about upping my privacy game. From Gmail and Google Drive to cloud-based note-taking applications, I wanted to stop giving all my data to companies that would monetize it. The first order of business was to replace my haphazard use of Google Keep with a private note-taking application.
My requirements were simple: Allow low-friction editing, a clean UI, and end-to-end encryption. To my surprise, I could not find a single application that fulfilled all three. So instead I set out to create my own. Over the next year or so, I embarked on a tumultuous journey to build my first "large-scale" full-stack application.
What's a project report?
I intend to start a series of notes detailing the thought process going into my applications and the resulting concepts and architectures. Ideally, I would write these as I am building the application, but since this one has been built way before this website even existed, I'll have to do it retrospectively.
Hopefully, I'll be able to detail my journey from novice to experienced fullstack engineer in this format. It may also serve as another chance to reflect on what worked well and what didn't in my various projects.
An inspiration for starting this, by the way, was this blog post on taking screenshots. Writing these notes will force me to document my application in a format that is more likely to be viewable in the future. My trouble to get an old version of fieldnotes running just to take a screenshot emphasizes that point.
A brief recap

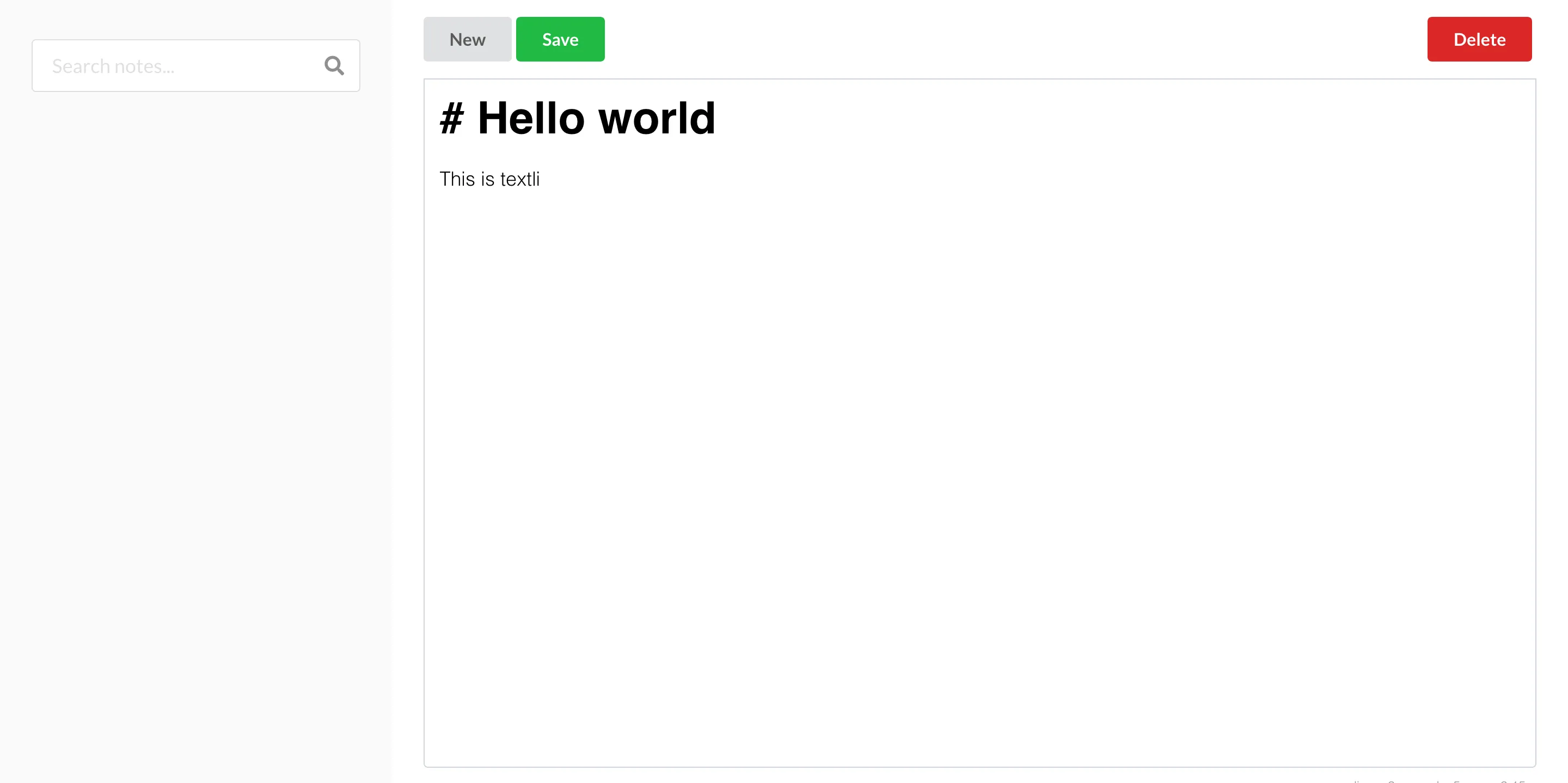

The very first version of this application I built featured a simple Python server storing notes as files on disk. It didn't support multiple users and protected access using hardcoded basic auth. My frontend experience at this point consisted of approximately 2 months of on-the-job React usage. So I built the UI using React, the only way I knew how: Prop drilling. For UI components I used Semantic UI. Looking back at this code my eyes start to bleed. Anyhow, this is how it looked:
It was simple but functional, I was hosting it on a Raspberry Pi in a shoebox. At this stage, there was no encryption. Since I was self-hosting and thus was the only person with access to the data, I figured there was no point.
I quickly outgrew this code base and started rewriting it. This time the backend was implemented in Rust with a MongoDB database. The frontend was still React, but this time making use of some more sophisticated state management: Context. Also, I switched to the Ant Design UI component library. This is also the point where I started hosting my applications on a VPS rented in a datacenter. So long, trusty shoebox RPi.
Trying to start this application locally to get a screenshot turned out to be quite hard. So much for the longevity of frontend code bases.

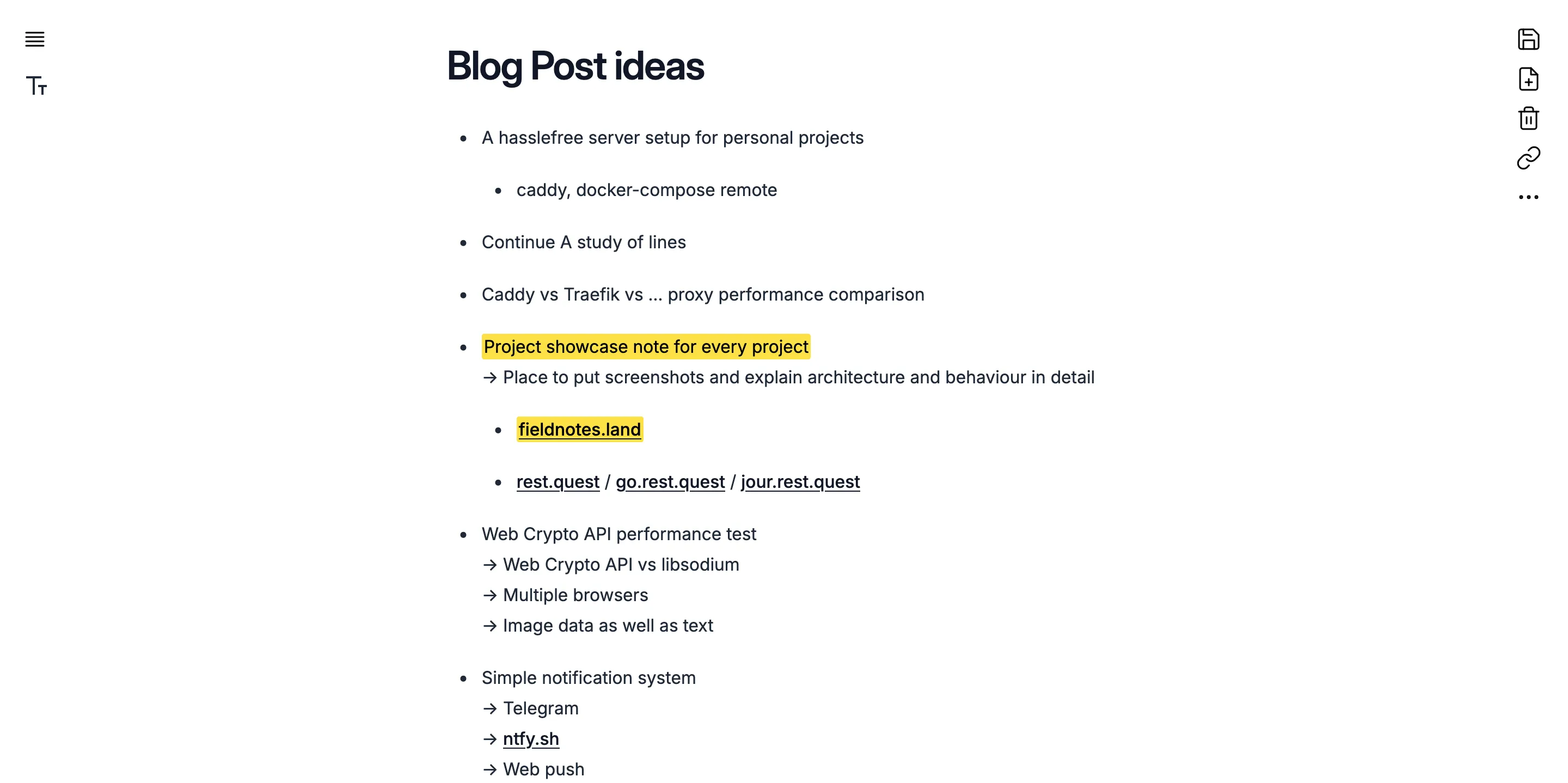

But v2 was not even deployed when I got the itch to rewrite again. I gave in and built the application using Rust and PostgreSQL in the backend and React with Jotai state management in the frontend. This time around I used Tailwind CSS with Headless UI components. This turned out to be the stack that stuck. This is what it looks like today:
I find it amazing to look back on these 3 versions of the same application and reflect on my progress both technically as well as visually. You can see my minimalistic style preference forming in real-time. And my technical preferences are materializing just as I'm using different approaches and figuring out better ways.
In the following, we will only consider the latest iteration and talk through architecture and design decisions.
Features
Fieldnotes currently boasts the following features: Low-friction editing, minimalistic and elegant UI, end-to-end encryption, and private note sharing.

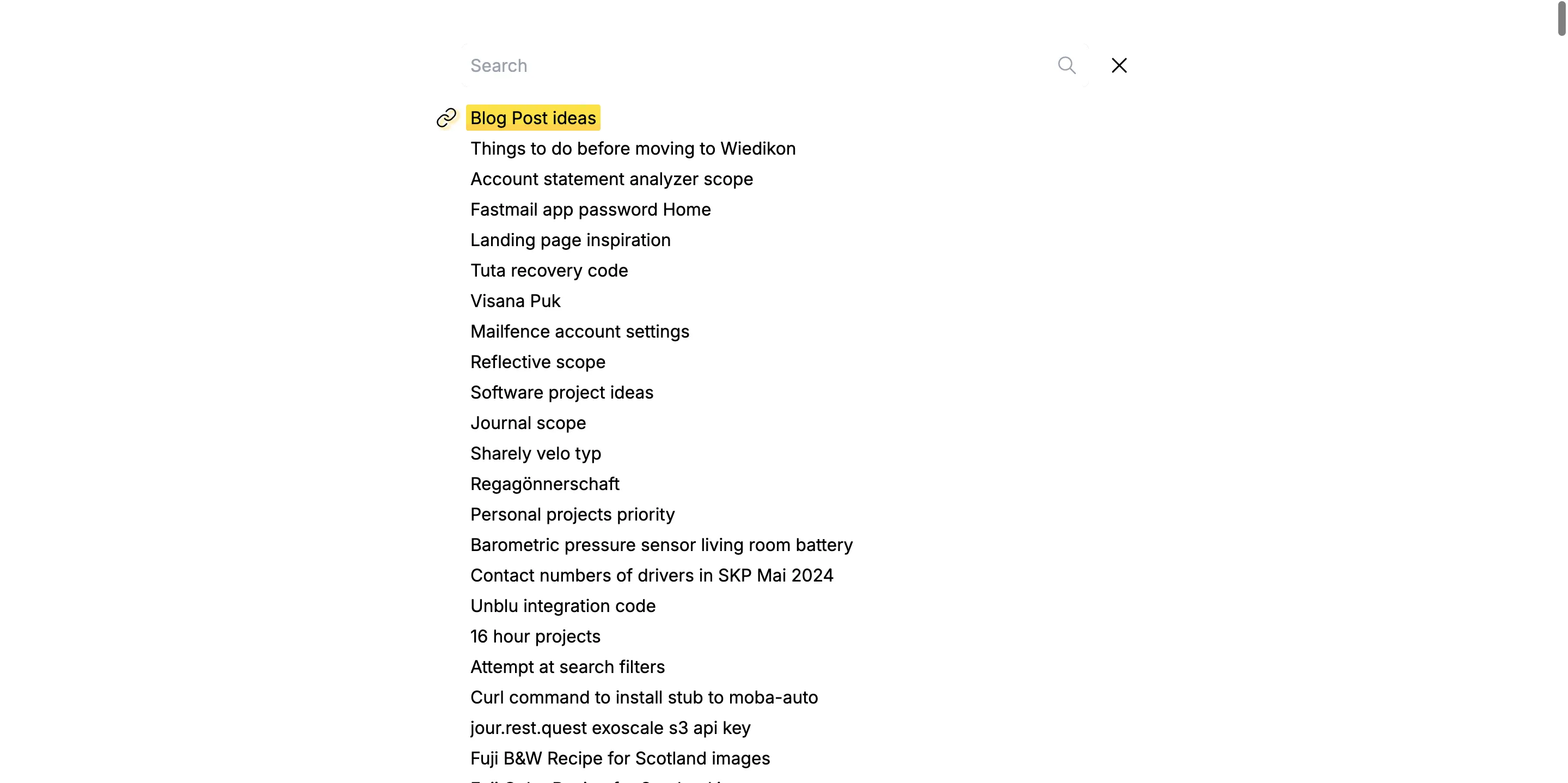

Searching for notes (cmd+k) opens an overlay with a flat list of all notes. Due to the e2e encryption, only note titles can be searched here.

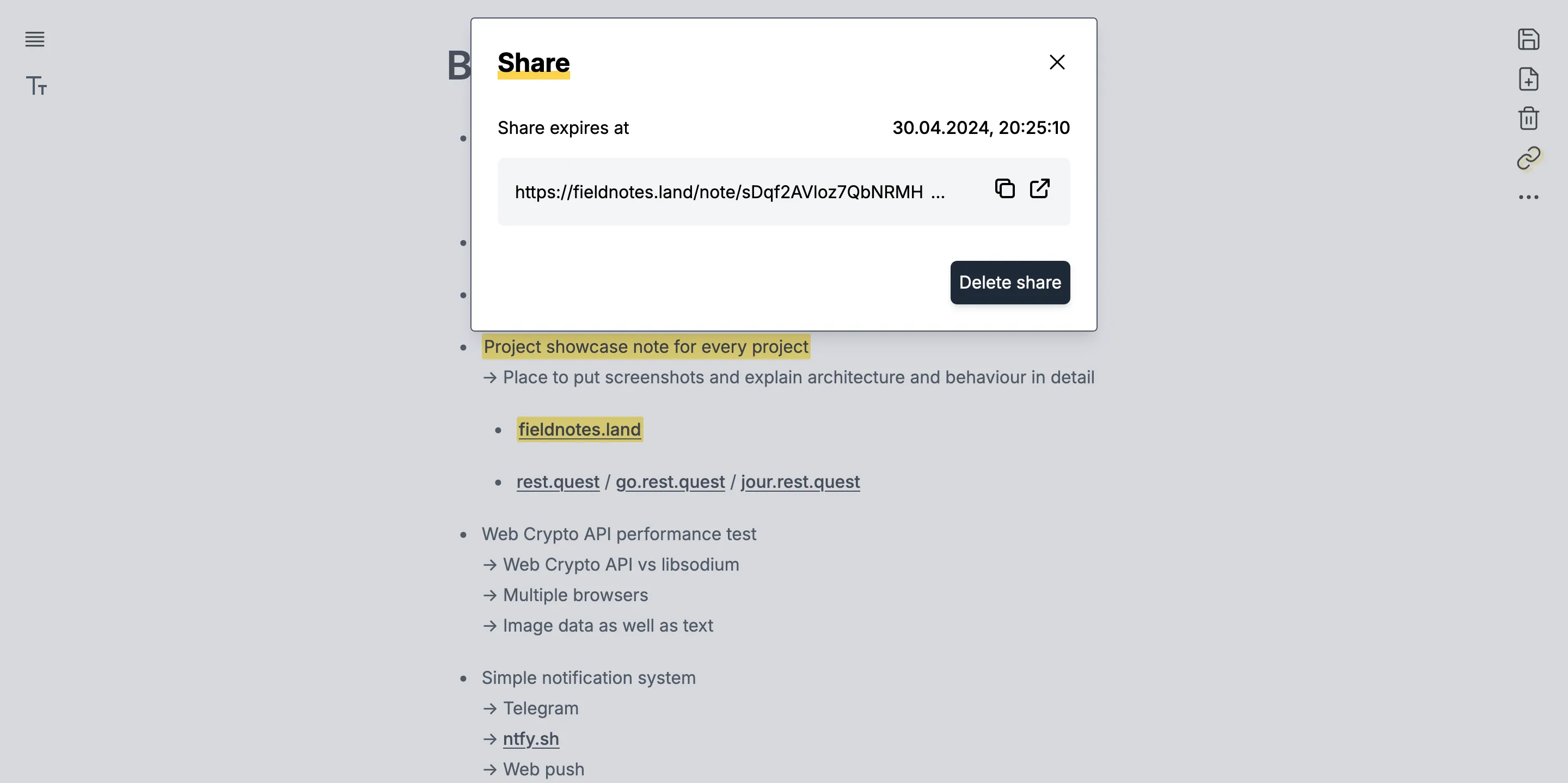

Notes can be shared privately via a share dialog. The user can choose how long the share link should stay active for.

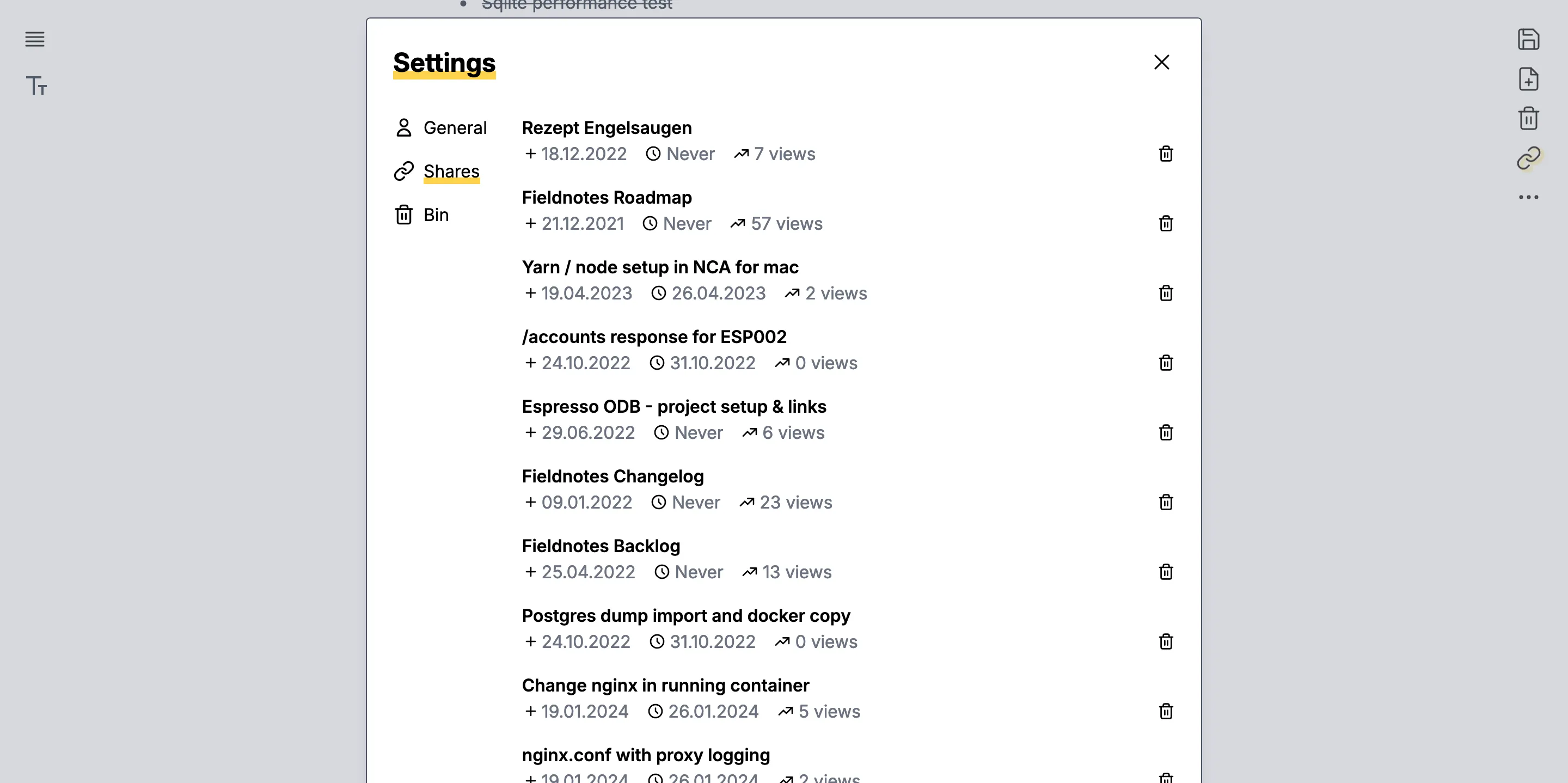

In the settings, a list of all shares can be viewed. The backend keeps track of how many times a share has been viewed.

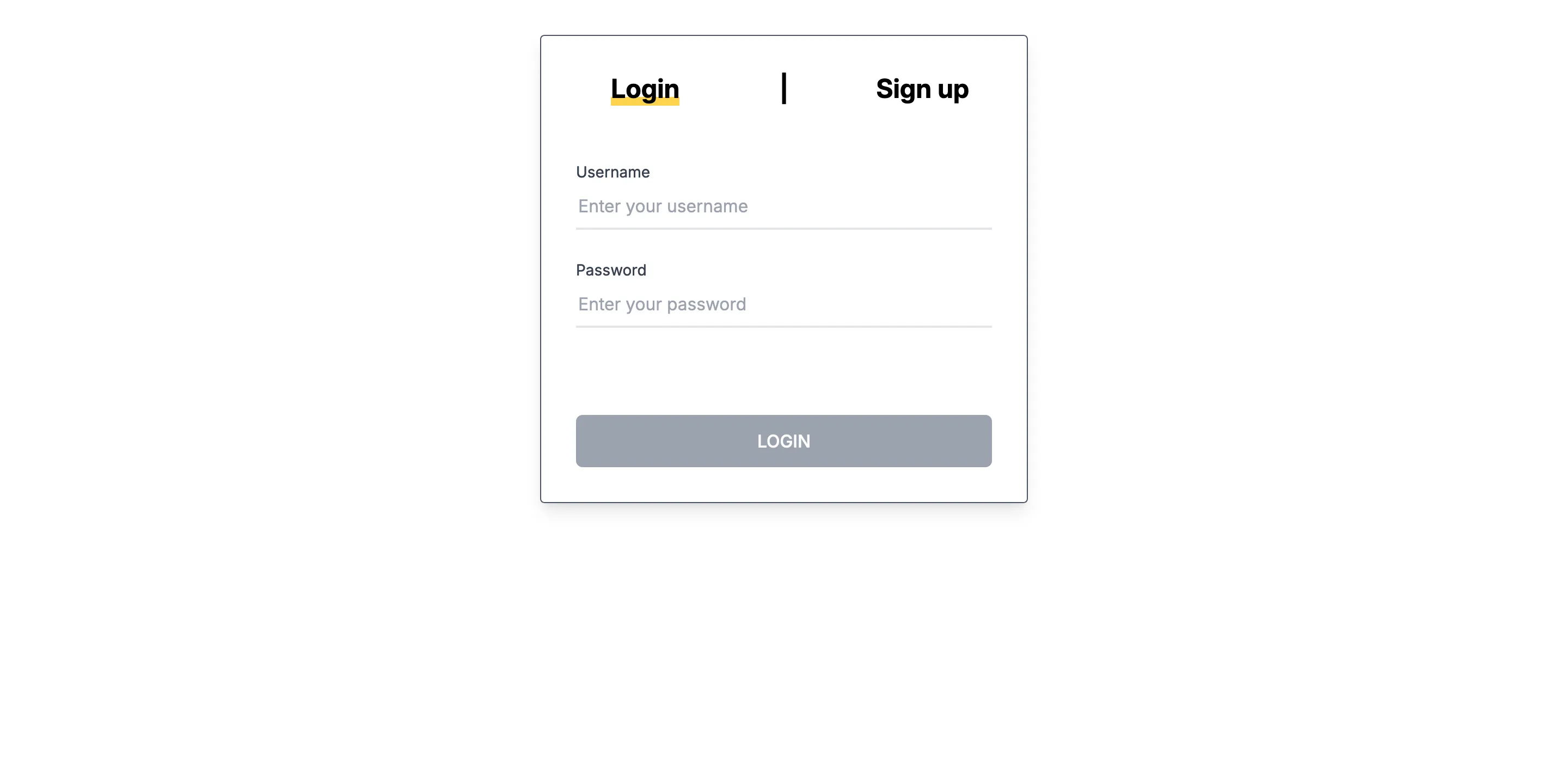

Authentication is handled by the backend in a hand-rolled auth system. Only username / password is supported, reset emails are not implemented.

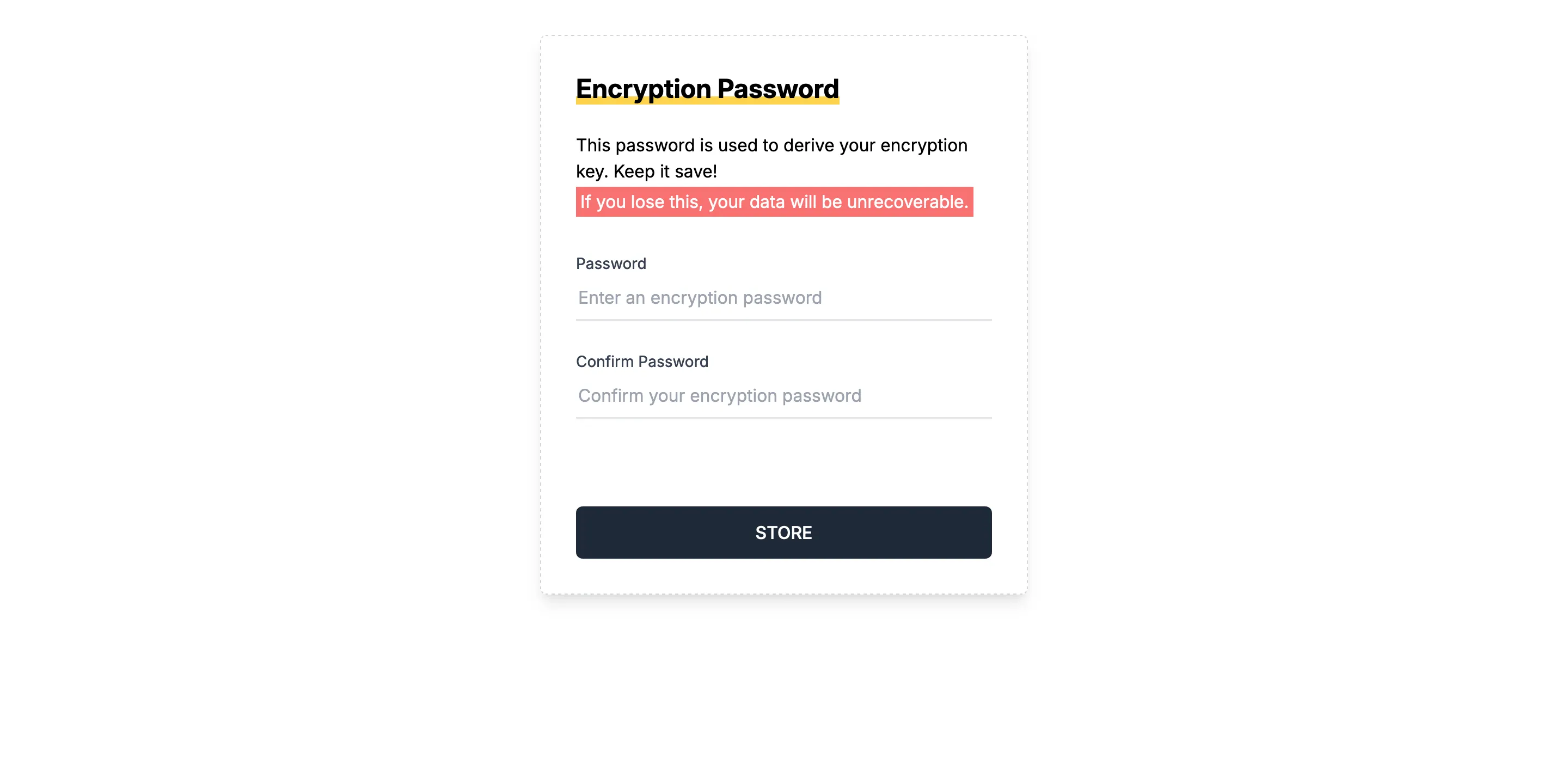

Upon login for the first time on a device, the user is prompted for an additional password that is used to derive a key for encryption. More about this in a later section.
Non-features
While I now consider Fieldnotes feature complete for my purposes, it's fun to look back at
aspirations I had for it at one point. Looking at an ancient Fieldnotes Roadmap note I have
in Fieldnotes, I was thinking about collaborative editing, versioning of notes, image upload to
s3 (to avoid blobs in the DB), note cross-linking, and even a hosted personal blog site powered
by published notes. To think I was about to reinvent a CMS by accident makes me shudder a bit.
In hindsight, I'm happy to have cut the cord at the point I did. Arguably, even the sharing functionality does not pull its own weight, I'm glad I didn't go further. Fieldnotes is wonderfully functional in the state it is now.
Architecture
A disclaimer about completeness
This project was such a massive learning experience, it's hard to put everything in writing. Especially in retrospect. But I want to give one example to illustrate a train of thought that is hard to comprehend with some experience under your belt.
Shortly before I started working on Fieldnotes, I was studing CS at university with a focus on high-performance computing. I had no experience with web development whatsoever. When I started conceptualizing the authentication system for this application, I was dumbfounded by the thought of making an extra DB query every time any request had to be authenticated (think checking validity of session token). After all, I was just yesterday spending a lot of time making sure my data is efficiently preloaded into cache, and now you're telling me I have to wait a relative eternity for the DB to go read from disk before I can start doing any actual business logic?
So I was feverishly researching how other people solve this problem. I set my eyes on JWT as a means to be able to keep a key in memory and verify the validity of the signed token more efficiently than going to disk. Everyone on the internet is trying to tell you not to do that (mainly because revocation of a token is hard), but it remained very tempting.
Ultimately, it took an embarrasing amount of time to let it sink in that this extra round trip to the DB does not matter much in such applications, when a network roundtrip is involved and throughput is more important than latency. Turns out it's okay to stick with established best practises unless you really know better. Now I'm sympathetic when I see a novice ask a seemingly insane question on a forum, probably there are some underlying, unarticulated assumptions that lead to a very wrong mental model.
There are other such detours that would make this note unnecessarily long if mentioned, just know that there were many.
At the core, the Fieldnotes backend is a simple CRUD (create, read, update, delete) app. It stores all its data in PostgreSQL. For authentication, there are user and token tables that store hashed credentials as well as session tokens. The frontend is a single-page application built in React. It uses Jotai for state management. The extensive features of the note editor, like advanced formatting, markdown support as you type, and a floating formatting bar are provided by the excellent tiptap. Most of the standout functionality of Fieldnotes lives in the frontend. The most interesting feature, worthwhile of getting into is the client-side encryption.
Deriving the main key
When a user logs into the application on a new device for the first time, they are asked to provide an additional "encryption" password. This password is used to derive what I call the main key using PBKDF2. In other words, the password provides the initial key material to seed the creation of the key. Now, the key is stored in the browser and can be used for encryption and decryption.
If the user attempts to use Fieldnotes on a different device now, entering the same encryption password will result in the generation of the same main key, thus, allowing interoperability between encrypted content from one device to the other.
At no point does the key stored in one device's browser leave the device.
Encrypting a note
Now, let's consider what happens when a user wants to store a new note:
- User writes a note and tries saving it
- Client generates an encryption key for this note using AES-GCM
- Client encrypts content and metadata using encryption key with AES-GCM
- Client wraps encryption key using main key with AES-KW
- Client sends cyphertext and wrapped key to backend for storage
Notable here is the inclusion of the "per-note" key, we will explore later how this is useful for sharing notes without exposing your main key.
Loading metadata
When loading the list of notes into the frontend, the application receives an array of objects, each containing encrypted metadata and a wrapped key for this note. Now, we unwrap each note's key using the main key and use it to decrypt the metadata.
Decrypting a note
To decrypt a note is very similar to loading metadata, with the exception that for this API call, the backend also returns the full encrypted content of a note. This is decrypted using the plain key for this note.
Sharing a note
To share a note to a third party via only a link, we need to communicate all the information needed to decrypt the note. This is done by embedding the plain key of this particular note as the hash of the URL. So a shared link will look something like
or simplified:
The client application now requests the note with NOTE_ID from the backend and then goes
through the decryption process using the plain NOTE_KEY found in the hash.
This should motivate the existence of the note key. One might consider encrypting notes directly using the main key. However, to allow a third party to decrypt a note, you'd have to provide the main key to them. That would allow them to decrypt any note, not just the one you shared, provided they can get their hands on them. By introducing a key for each note, we can easily share that with the recipient of a shared link, without exposing all other notes. There is also no privacy loss towards the backend, as the keys are wrapped by the main key before ever leaving the device.
Security considerations
There is a lot of well-established criticism for web-based applications trying to achieve end-to-end encryption. The main issue is that you want to be able to audit the code of the application to actually trust that the encryption happens as advertised. For native applications that is doable but for web applications it gets more tricky: I get to send you a new application every time you load the web app and I get to send a legitimate application to the security researcher but a compromised one to you. So you just shouldn't really trust a web app.
Nothing I did in my application changes that basic limitation. There is one thing that improves the situation a bit in my opinion: Secure key handling with Web Crypto API. When you have the browser generate a key for you, you can specify that the key is not to be handed out, ever. Instead, you only get a handle on the key. With the handle, you can still carry out encryption and decryption operations, but you can never exfiltrate the key in plain text. In my opinion as a non-specialist in security questions, that means you only have to trust the web app on the first use. After that, even I can not maliciously extract that key. (I can still carry out decryption operations in your browser that you didn't want to happen, though)
Deployment
Fieldnotes is deployed using docker-compose to a small Hetzner VPS. SSL for the domain is handled by Caddy. It also serves as a web server for the static frontend bundle as well as a proxy for the backend API.
Learnings
Building this application (or rather 3 applications that happen to do the same thing) has been an educational roller coaster. It helped me develop skills significantly faster than if I only did engineering on the job. But most importantly, it kick-started my appetite for side projects!
To also mention some concrete lessons: By the third iteration of Fieldnotes I learned that I should deploy a "Hello world" application first things first. Building things locally and waiting for the right moment to deploy is futile: That moment never arrives. Now I'm firmly in the MVP camp. My applications got significantly leaner and I really ponder if a feature pulls its own weight.
Lastly, when the application started to be pretty useful and fun to use, I started imagining a path toward commercialization. I even started building functionality in this direction. It took some time for the illusion to wear off when I realized that the value proposition for such a simple tool in such a crowded market simply wasn't there. Now I'm more conscious that I build for myself. If I ever create something that other people find useful, I can always revisit commercializing it.
